Container types

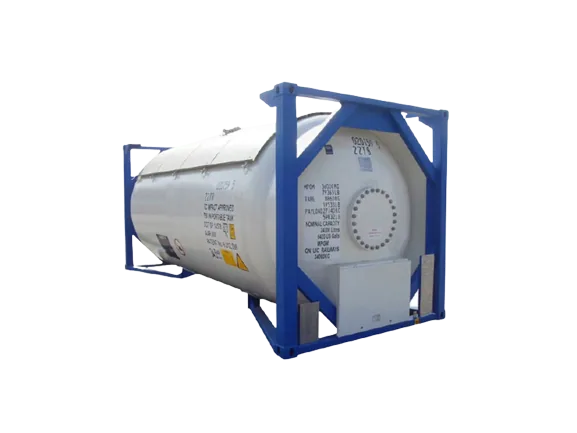

ISO pneumatic tank
Konex Container' pneumatic ISO tanks offer industry-leading unloading times with minimal operator intervention. This powerful unloading system is the foundation for all Van Container ISO powder tanks.
Main features
- 1 ton per minute unloading rate
- Double safety pressure relief valves
- Internal pressure equalization
- Impact protection system above the air lines to reduce possible fork damage
- 3 top loading hatches
- Fully ground operated
Product Details
Konex Container ISO pneumatic tanks are designed by our Australian engineers and fully comply with AS1210, AS3788, ISO, TIR, and TCT standards. Ideal for intermodal or on-site transport of cement powder, lime, bentonite, and fly ash, our tanks feature an internal pressurization and pneumatic loading system for cost-saving efficiency.
Konex Container's ISO pneumatic tanks comply with occupational health and safety (OHS) requirements and are also available in a low-profile version for supply chains with low railway bridges. Optional forklift pockets are also available for full loads where forklifts are not readily available, such as in mines.
A new range of cement tanks with a patented unloading system will soon be launched, offering all the traditional features of Konex Container' existing pneumatic system while allowing for higher payloads and lower deadweight.
VOLUME
| Liters | 28,000 |
|---|---|
| m³ | 28 |
EXTERNAL
| Length (mm) | 6,058 |
|---|---|
| Width (mm) | 2,502 |
| Height (mm) | 2,896 |
WEIGHT
| Tare (kg) | 4,150 |
|---|---|
| Payload (kg) | 29,850 |
| Max. total weight (kg) | 34,000 |
How is this container delivered?
We want to make your container delivery on-site as smooth as possible. Please inform us when requesting a quote if there are any obstacles near your planned container location, such as power lines or if access for a truck might be difficult.
Also, make sure the area where the truck needs to drive is clear and that pets and children are safe.
Local delivery can be arranged in the following ways.
Side loader
We use sideloaders to transport our 20- and 40-foot containers. This is the optimal delivery method for containers in locations with limited space in front of or behind the container site. The container is unloaded between the two booms of the sideloader, approximately half a meter from the side of the truck.
Hiab crane
Hiab cranes lift containers using a mechanism behind the truck cab. They are used when space for a side loader or tipper body is limited. Using a crane, the container can be easily positioned at an angle or on a raised surface. It can also be used to negotiate fences or other obstacles.
Have you thought about it?
Ready for the next step?
Request a quick quote today to see if our products and services are right for you.
